Belt Conveyor Double Side Working Assembly Line
Introduction

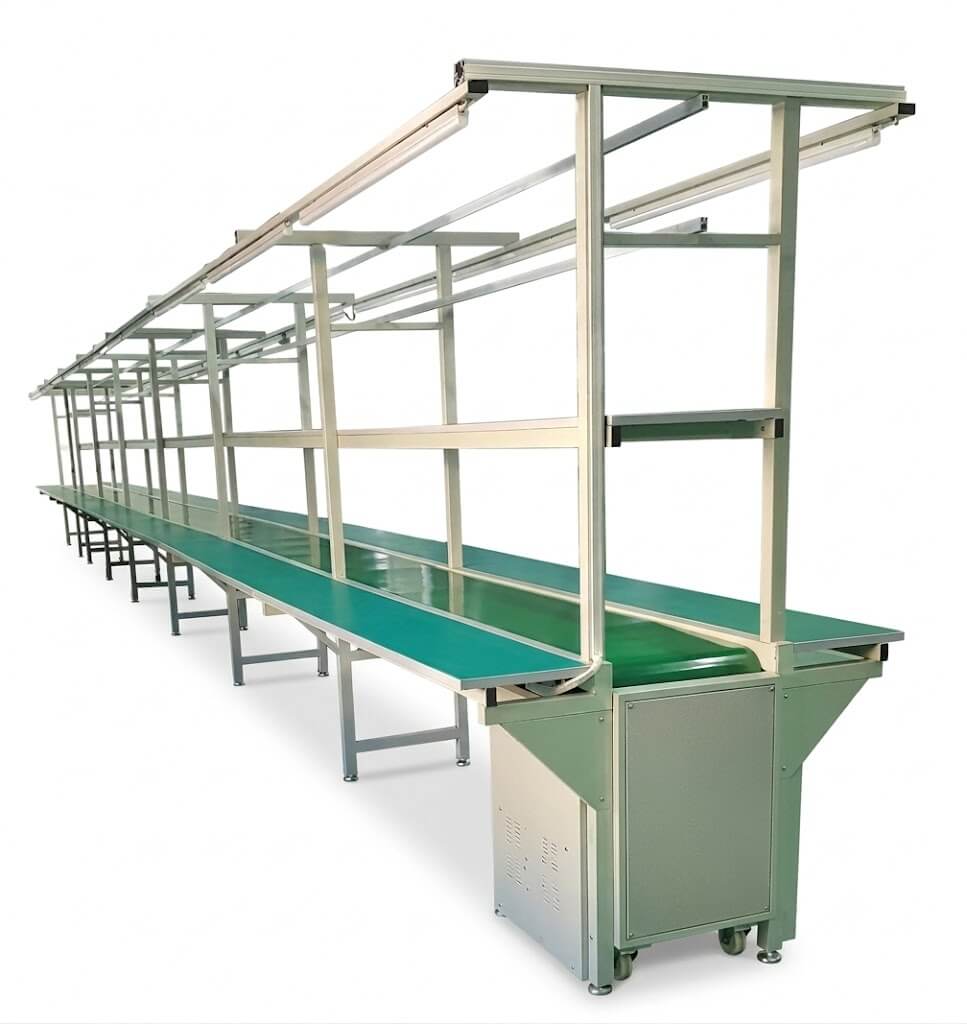

The XJS Belt Conveyor Double Side Working Assembly Line is designed for the efficient and continuous movement of PCBs and electronic components across different SMT production processes. Its dual-sided working design allows operators to work simultaneously on both sides, helping improve productivity and workflow efficiency.
Built with a strong industrial structure and ergonomic working layout, the assembly line provides a stable platform for PCB assembly, inspection, testing, quality control, and packaging operations.
Features:
- Double-side working design for simultaneous operation
- Continuous PCB movement for high-throughput production
- Strong aluminum or powder-coated steel structure
- Stable working platform with ESD-safe surface
- Ergonomic 850 mm working height
- Variable conveyor speed from 2–6 m/min
- Smooth and vibration-free operation
- Suitable for inline SMT production integration
- 300 mm MS sheet working top with ESD mat
- 400 mm steel shelf with ESD mat
- Integrated LED tube light provision
- Steel display board for magnetic drawing holders
- Electric socket provisions for workstation requirements
Technical Specifications:
| Parameter | Specification |
|---|---|
| Conveyor Length | 6 Meter (20 ft) |
| Belt Width | 400 mm |
| Working Top Width | 300 mm (MS Sheet with ESD Mat) |
| Structure | Aluminum (40×40) / Powder Coated Steel |
| Conveyor Speed | 2–6 Meter/Minute (Variable) |
| Working Height | 850 mm ± 25 mm |
| Total Height | 1950 mm ± 25 mm |
| Motor | Motor with Gearbox |
| Control Panel | VFD Panel |
| Lighting | LED Tube Light (Without Wiring) |
| Display Board | Steel Board for Magnetic Drawing Holder |
| Electric Socket | 2 Switch + 2 Socket Box every 6 ft (Without Wiring) |
| Shelf | 400 mm Steel Shelf with ESD Mat |
| Speed Control | Adjustable conveyor speed with VFD-based control |
