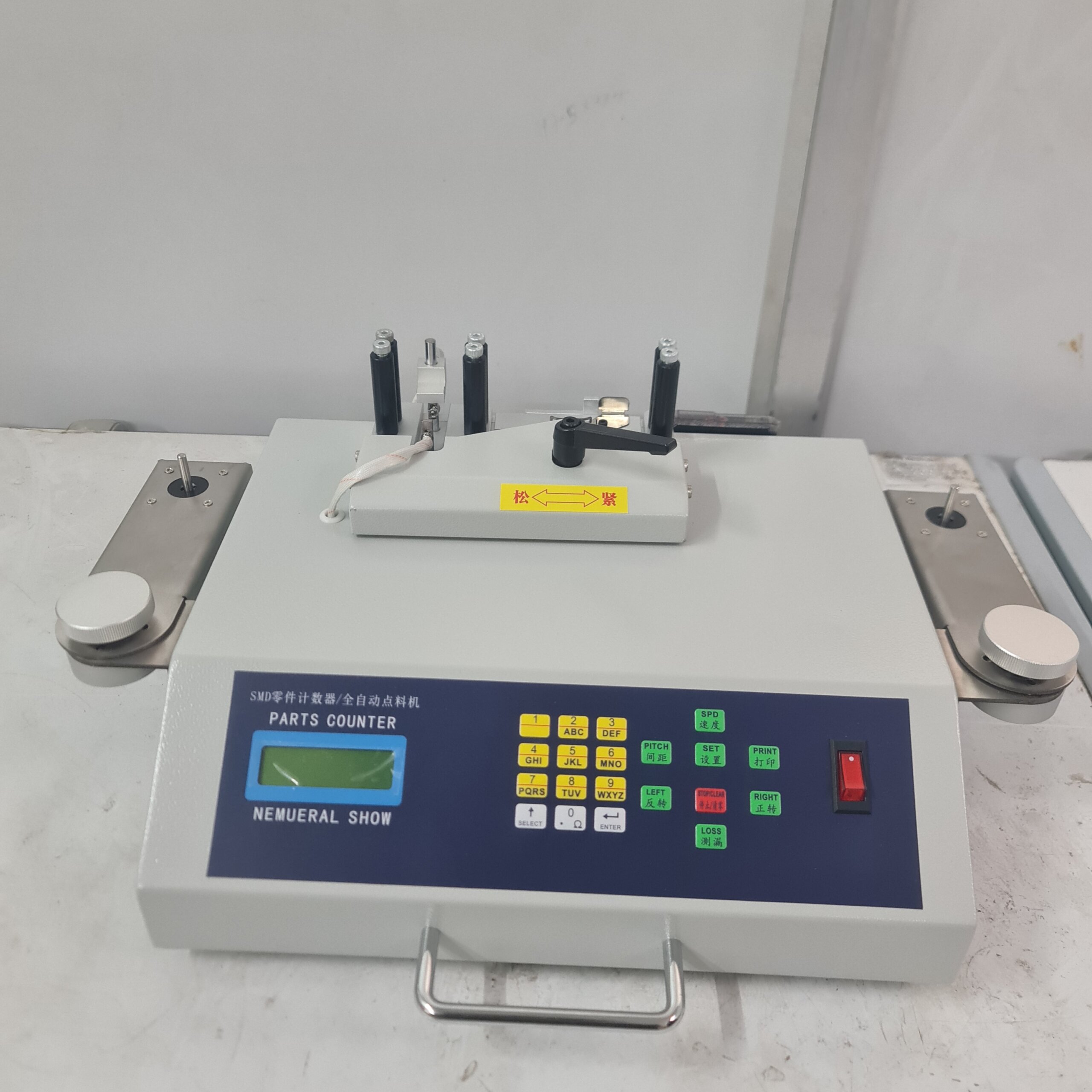

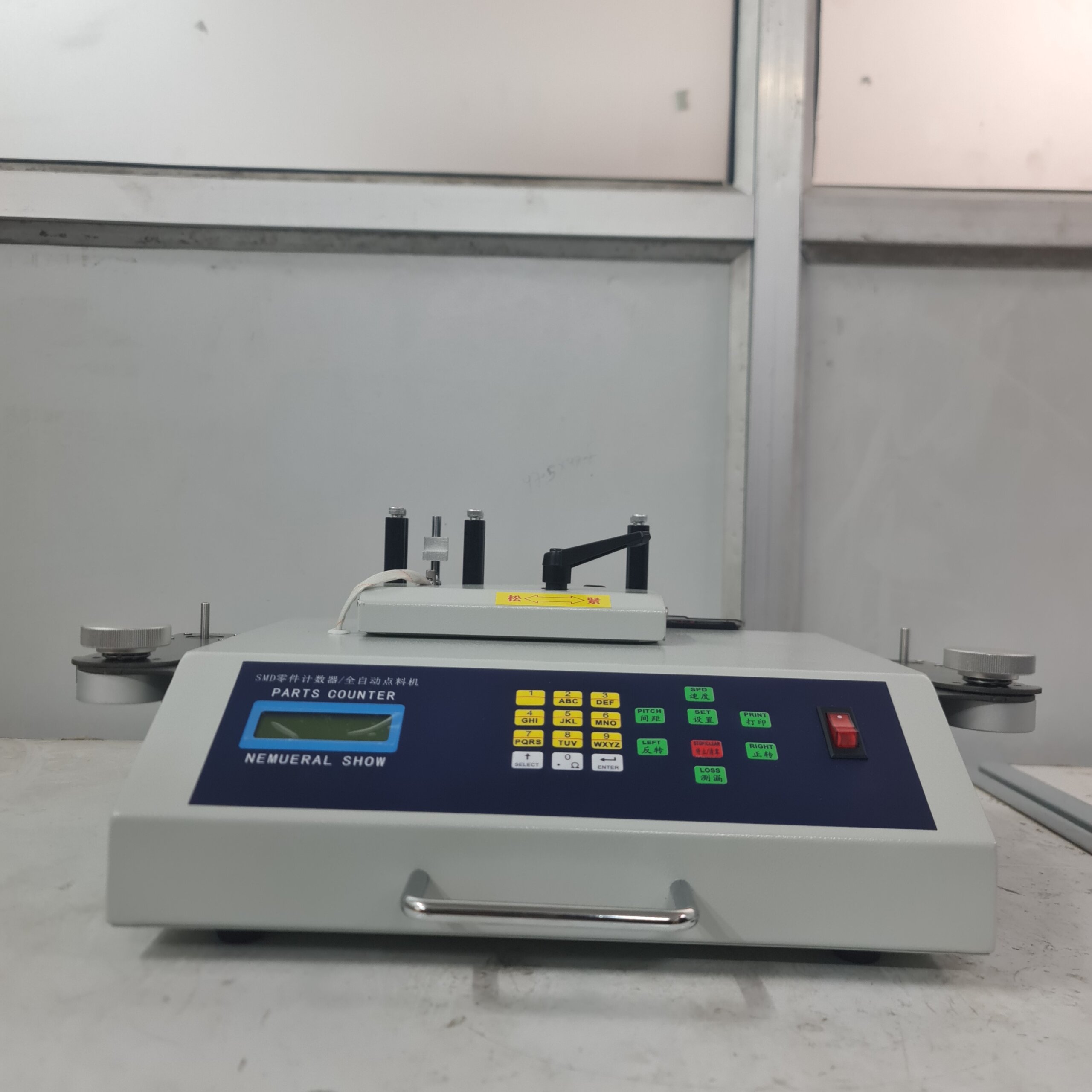

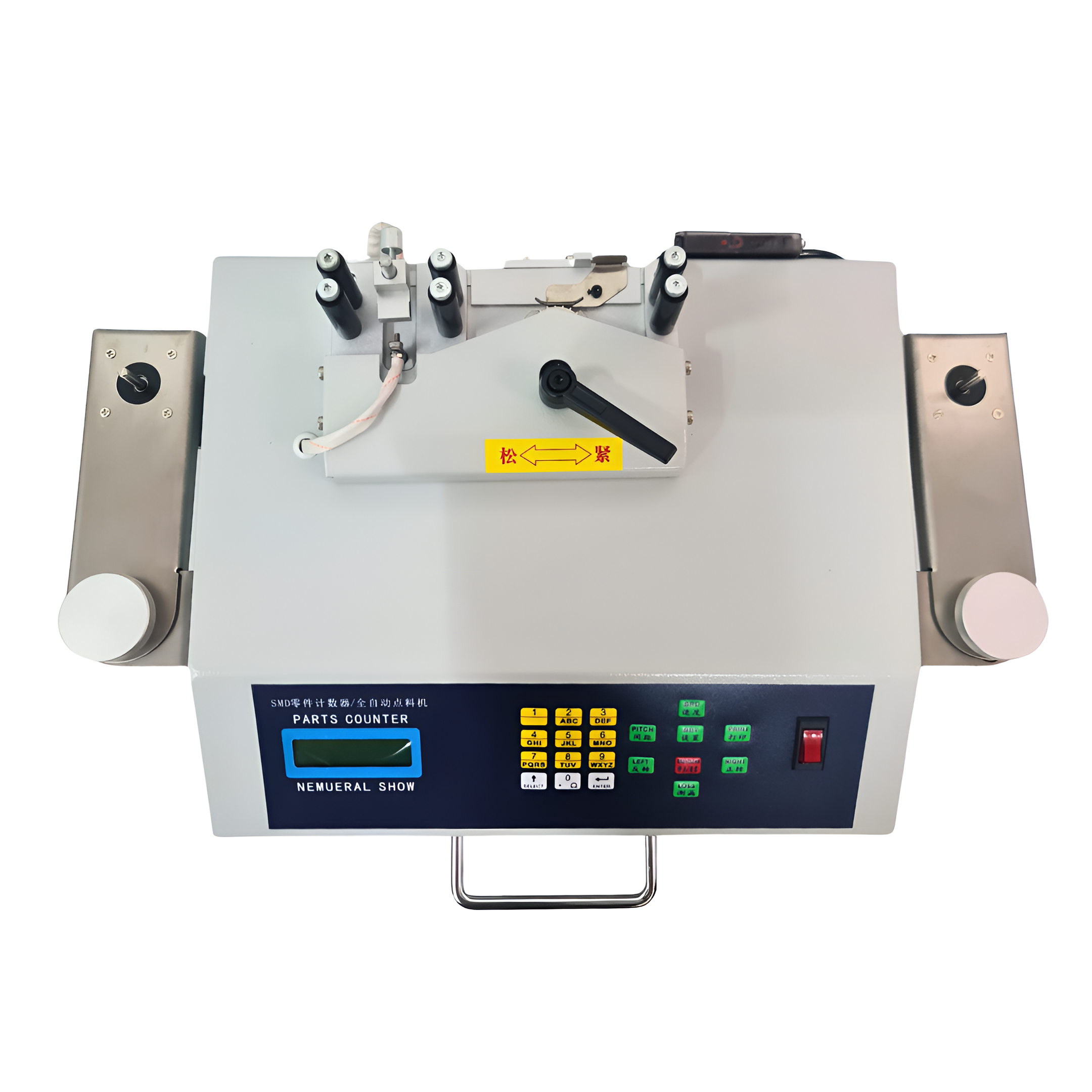

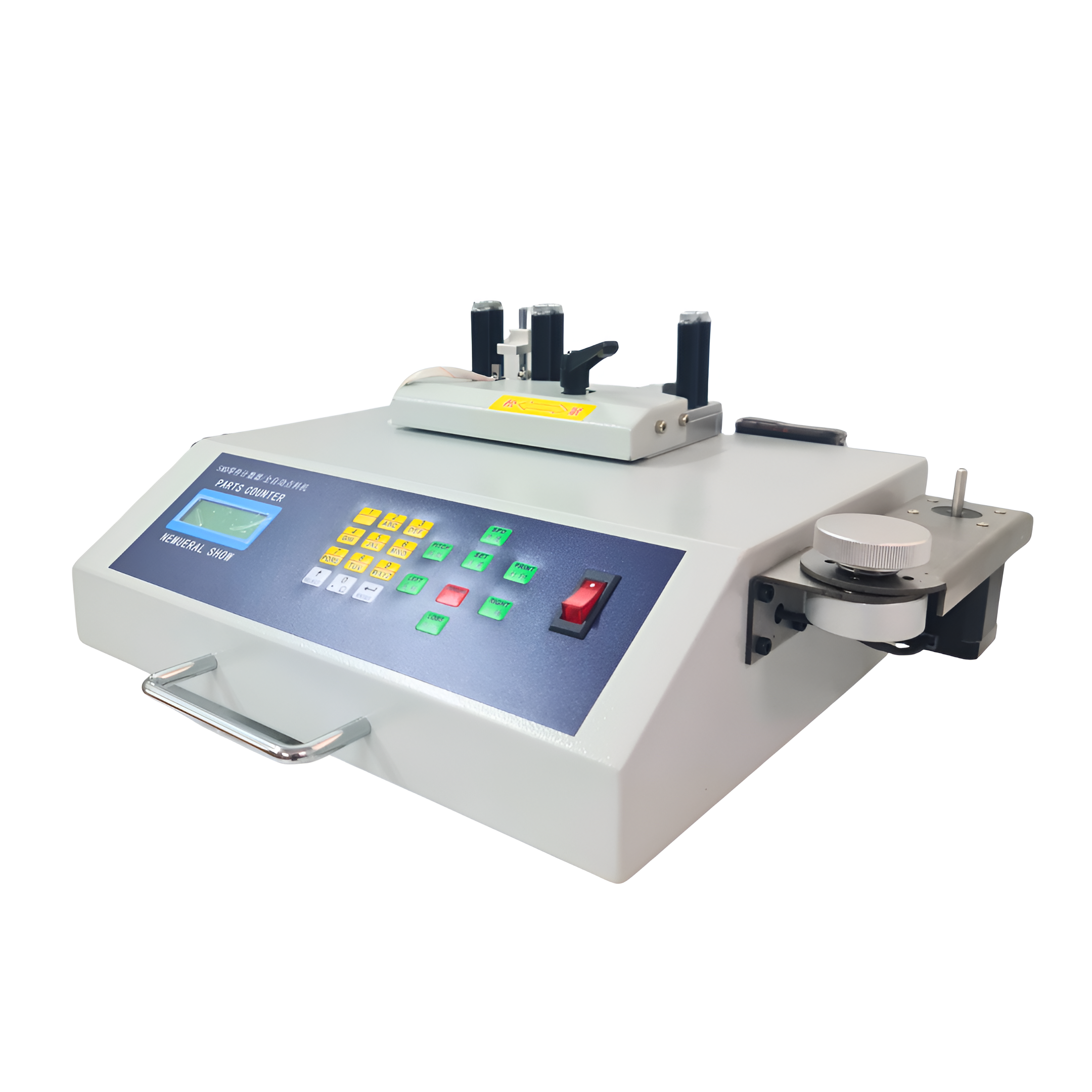

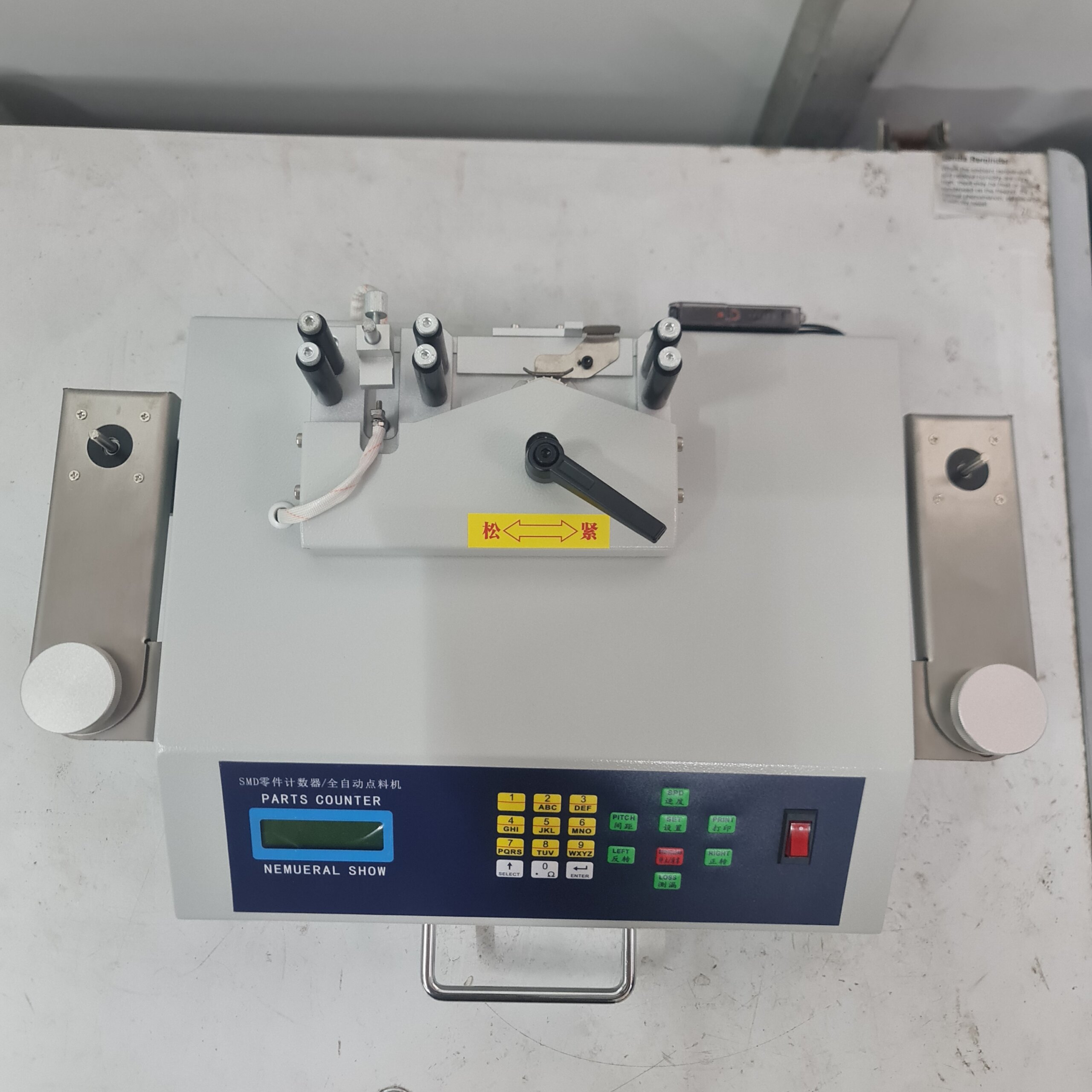

XJS SMT Chip Counting Machine
Introduction
The XJS SMT Chip Counting Machine is a high-precision automatic SMD counter designed for efficient and accurate reel component management in PCB assembly lines. Built with advanced optical sensors, patented anti-reflection lenses, and intelligent tape protection, this machine delivers error-free component counting while protecting delicate SMD reels.
Ideal for EMS factories, SMT production lines, and component warehouses, the XJS chip counter improves productivity, prevents material shortages, and enables seamless barcode tracking and inventory management. Its compact design, user-friendly LCD interface, and optional barcode printer integration make it the perfect choice for modern electronics manufacturing.
Features:
- Fully Automatic & Accurate Counting – Zero error rate with forward/reverse double verification.
- Anti-Drop Design – Prevents tapes and SMD reels from damage during counting.
- High-Speed Counting – Handles up to 5000 pcs in just 10 seconds.
- Easy-to-Use LCD Display – Large English LCD screen for smooth operation.
- Patented Anti-Reflection Lens – Ensures accurate optical detection in all conditions.
- Optional Barcode Scanner & Printer – Simplifies inventory control and traceability.
- Leakage Detection – Detects missing or empty components, ensuring reliable results.
- Compact & Durable – Built with sheet metal + SKD11 for long service life.
Technical Specifications:
| Specification | Details |
|---|---|
| Machine Size (mm) | 470 × 310 × 210 mm |
| Counting Capacity | 5000 pcs / 10 sec |
| Counting Volume | Up to 99,999 pcs |
| Power Supply | AC 110V / 220V, 50/60Hz (Convertible) |
| Power Consumption | 30W (2 Motors) |
| Material | Sheet Metal + SKD11 |
| Net Weight | 10 kg |
| Reel Diameter | Suitable for SMD reels of any diameter |
| Reel Widths Supported | 8 / 12 / 16 / 24 / 32 / 44 / 56 mm |
| Reel Interval Distance | 2 / 4 / 8 / 10 / 12 / 16 / 24 / 32 / 44 / 56 mm |
| LCD Display | Large drafting LCD, full English display |
| Color | Pale Finish |
| Accuracy | ±0 error with double verification |
| Extra Options | Barcode Scanner & Printer, Leakage Detection |
