WS-300PC-LF Wave Soldering Machine
Introduction
The WS-300PC-LF Wave Soldering Machine is engineered for medium-to-large PCB assembly lines, offering stable soldering quality, high throughput, and low maintenance. Designed to handle a wider range of PCB sizes, this system ensures excellent solder joint reliability, making it ideal for EMS companies, PCB manufacturers, and electronic production houses. With its lead-free compatibility, advanced fluxing system, and precise temperature control, the WS-300PC-LF stands out as a reliable choice for modern SMT production.
Features:
- Wider PCB Capacity – Supports up to 300 mm PCB width for larger boards.
- Advanced Spray Fluxing – German FEST atomized spray system ensures uniform flux application.

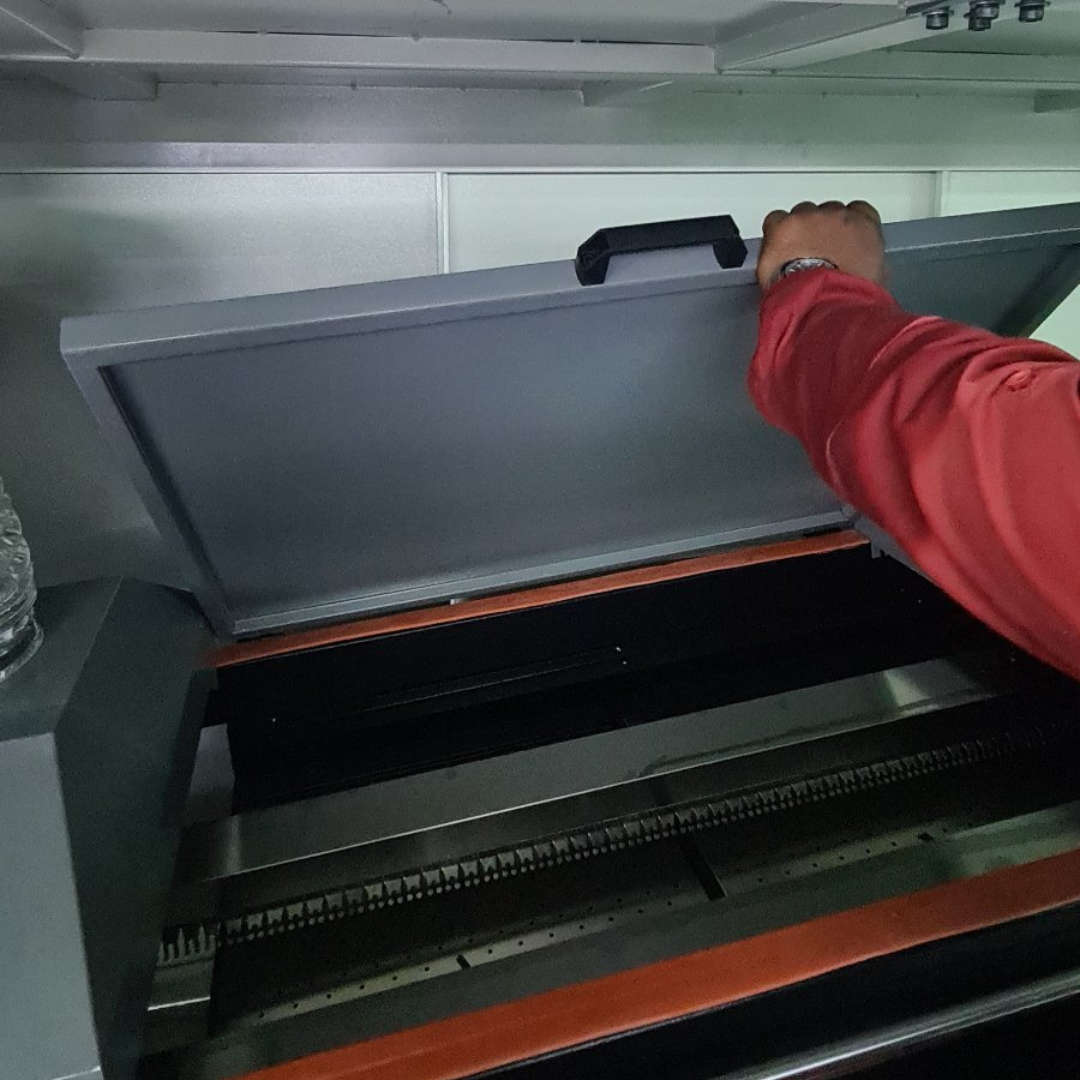

- High-Efficiency Preheating – Multi-zone heating for stable and consistent soldering results.
- Accurate Temperature Control – PID + SSR control delivers ±1°C accuracy.
- Optimized Cooling – Equipped with natural air cooling zones for effective thermal balance.
- Lead-Free Ready – Fully compliant with RoHS requirements for green manufacturing.
- Easy Operation – Touchscreen interface and robust control system reduce operator effort.
- Durable & Cost-Effective – Built for continuous operation with low maintenance needs.
Technical Specifications:

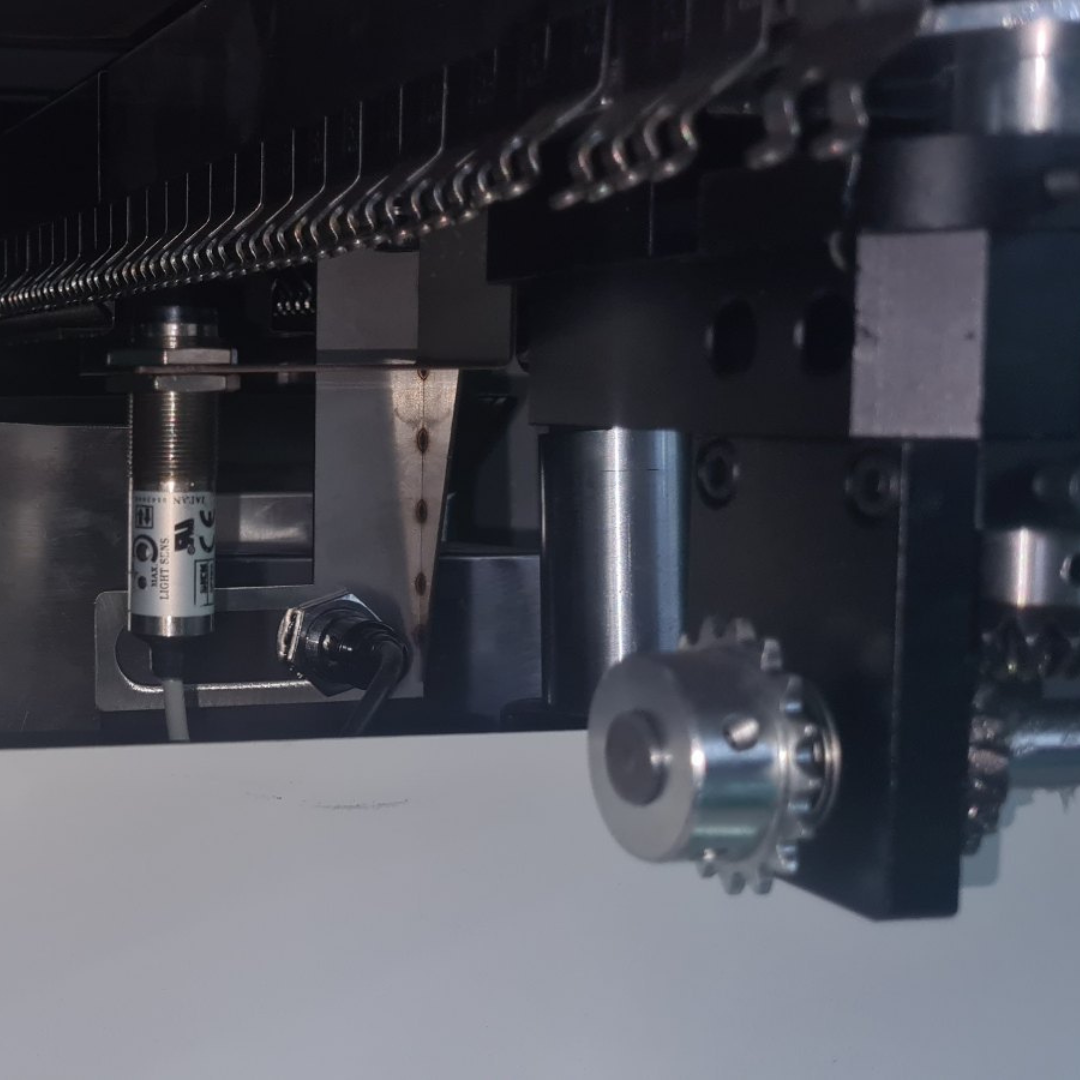

| Item | Specification |
|---|---|
| PCB Board Width | Max 300 mm |
| PCB Transport Speed | 0–1800 mm/min |
| PCB Transport Direction | L → R (optional R → L) |
| PCB Component Height | Max 100 mm |
| Preheat Zone Length | 1500 mm |
| Preheat Zone Power | 11 kW |
| Heating Temperature Range | Ambient ~ 250°C (adjustable) |
| Cooling Zones | Fan forced cooling |
| Applicable Solder Type | Lead-free / general solder |
| Temperature Control | PID + SSR |
| Machine Control | Touchscreen + Siemens |
| Flux Capacity | Max 5.2 L |
| Spray Mode | German FEST rodless cylinder + meijie spray |
| Tin Stove Power | 9 kW |
| Tin Melting Furnace | 200–260 kg |
| Total Power Consumption | 16 kW |
| Power Supply | 3 Phase, 380V |
| Dimensions (L × W × H) | 3600 × 1200 × 1650 mm |
| Weight | Approx. 1000 kg |
