WS-350PC-LF Wave Soldering Machine
Introduction
The WS-350PC-LF Wave Soldering Machine is a high-capacity, lead-free soldering solution designed for large PCB assembly lines and demanding production environments. With its wide PCB compatibility, enhanced solder pot capacity, and multi-zone heating system, this machine ensures stable, efficient, and precise wave soldering. Built for EMS providers, OEM manufacturers, and high-volume PCB production, the WS-350PC-LF delivers long-lasting performance, cost savings, and superior solder joint quality.
Features:
- Large PCB Capability – Supports boards up to 350 mm in width.
- High-Performance Heating – Extended preheat zones for reliable soldering.
- Powerful Fluxing System – German FEST atomized spray system for even flux coverage.
- Superior Temperature Control – PID + SSR system with ±1°C precision.
- Heavy-Duty Solder Pot – Larger capacity for extended production runs.
- Energy Optimized – Efficient power design reduces operating costs.

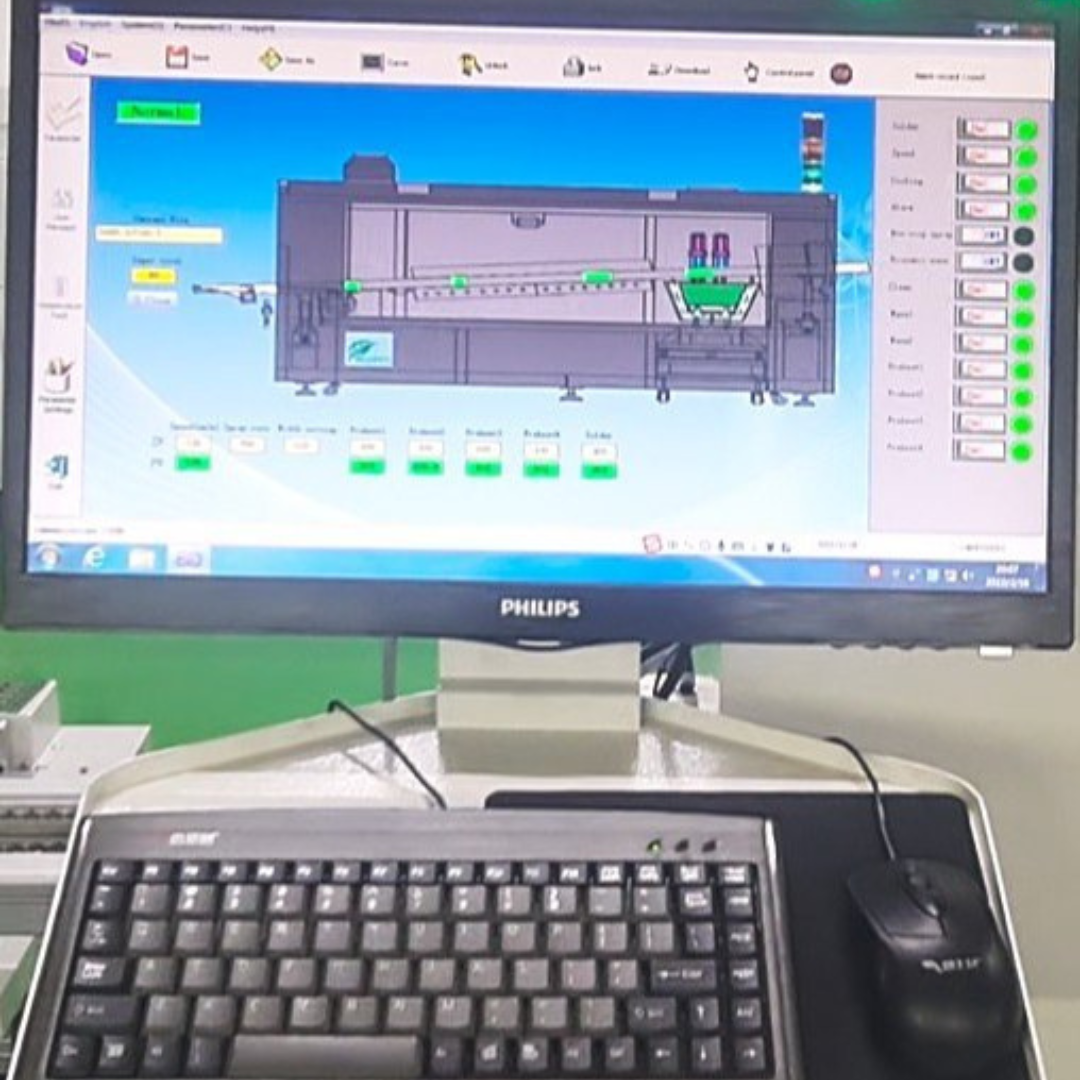

- User-Friendly Operation – Advanced touchscreen and PLC control for easy setup.
- RoHS Compliant – Fully compatible with lead-free manufacturing standards.
Technical Specifications:
| Item | Specification |
|---|---|
| PCB Board Width | Max 350 mm |
| PCB Transport Speed | 0–1800 mm/min |
| PCB Transport Direction | L → R (optional R → L) |
| PCB Component Height | Max 100 mm |
| Preheat Zone Length | 1800 mm |
| Preheat Zone Power | 11 kW |
| Heating Temperature Range | Ambient ~ 250°C (adjustable) |
| Cooling Zones | Fan forced cooling |
| Applicable Solder Type | Lead-free / general solder |
| Temperature Control | PID + SSR |
| Machine Control | Touchscreen + Siemens |
| Flux Capacity | Max 5.2 L |
| Spray Mode | German FEST rodless cylinder + meijie spray |
| Tin Stove Power | 9 kW |
| Tin Melting Furnace | 300–450 kg |
| Total Power Consumption | 21 kW |
| Power Supply | 3 Phase, 380V |
| Dimensions (L × W × H) | 4300 × 1400 × 1700 mm |
| Weight | Approx. 1800 kg |
