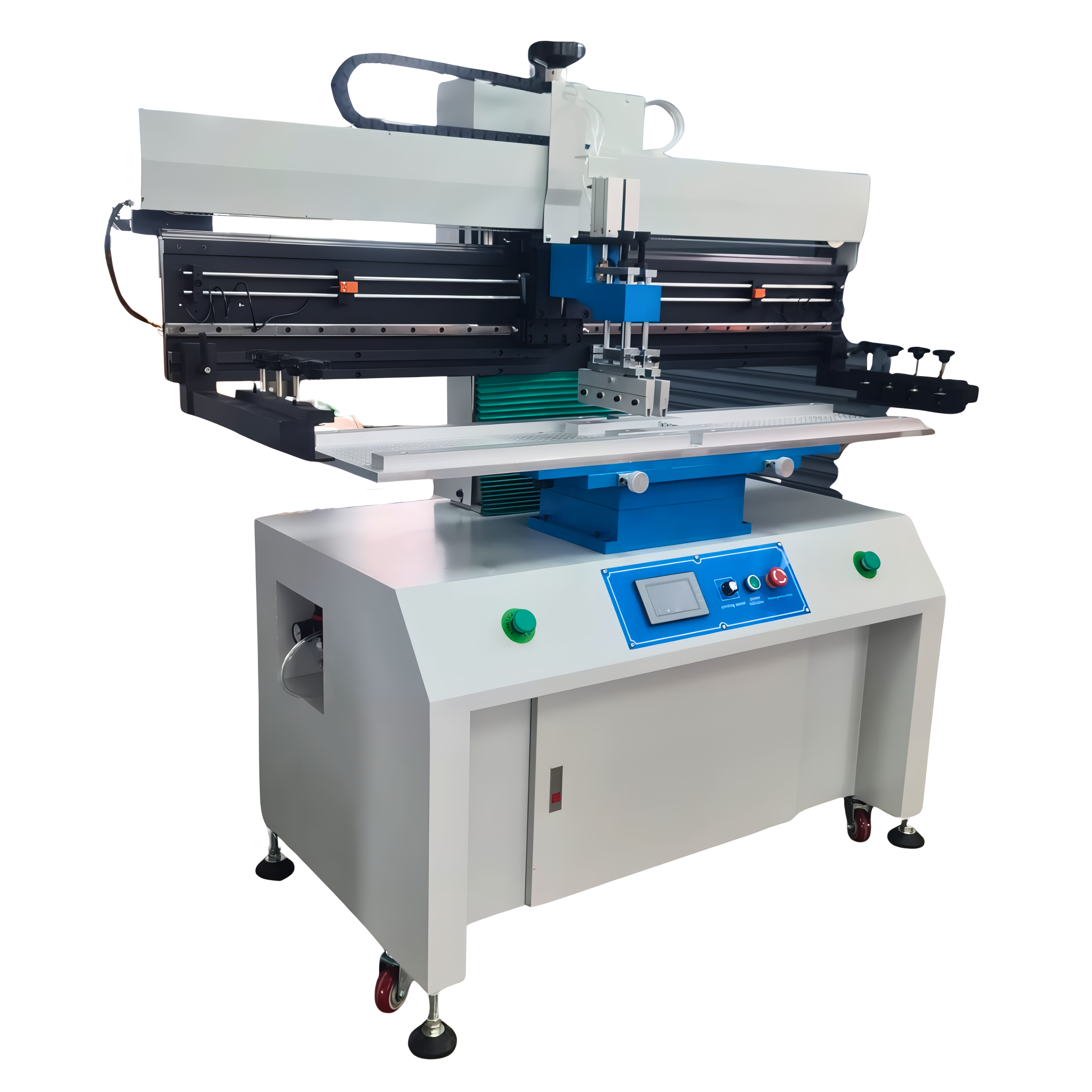

XJS-1068S Semi-Automatic Solder Paste Printer
Introduction
The XJS-1068S Semi-Automatic Solder Paste Printer is a high-precision solution designed for modern PCB assembly lines. With a large printing table area of 320 × 1300 mm, it is ideal for medium to large PCBs, ensuring consistent solder paste application.
Equipped with stable stencil positioning, advanced alignment systems, and accurate repeat printing, the XJS-1068S guarantees high-quality results for manufacturers in electronics, LED, and automotive PCB production. Its ergonomic design makes operation simple while maintaining superior performance and reliability.
This model is built for manufacturers who want cost-effective solder paste printing without compromising on precision.
Features:
- Large printing area up to 320 × 1300 mm for big PCBs.
- ±0.03 mm printing accuracy for reliable solder deposition.
- Supports PCB board thickness from 0.2 – 3 mm.
- Front/Back ±10 mm & RL ±10 mm fine adjustment for stencil alignment.
- Manual PCB positioning with bouter or pin system.
- Low power consumption (100W, 220V 50/60Hz) for energy savings.
- Designed for LED panel, home appliance, and industrial electronics production.
Technical Specifications:
| Printing Table Area | 320 × 1300 mm | Stencil Dimension | Max 1500 × 550 mm |
|---|---|---|---|
| PCB Thickness | 0.2 – 3 mm | Positioning System | PCB Bouter / Pin Positioning |
| Adjusting for Table | Front/Back ±10 mm, RL ±10 mm | Repeating Accuracy | ±0.02 mm |
| Minimum Spacing | 0.35 mm | Air Used | 4 – 7 Kg/cm² |
| Voltage | 220V, 50/60Hz, 100W | Machine Dimension | 1700 × 900 × 1650 mm |
| Weight | 320 Kg | – | – |
