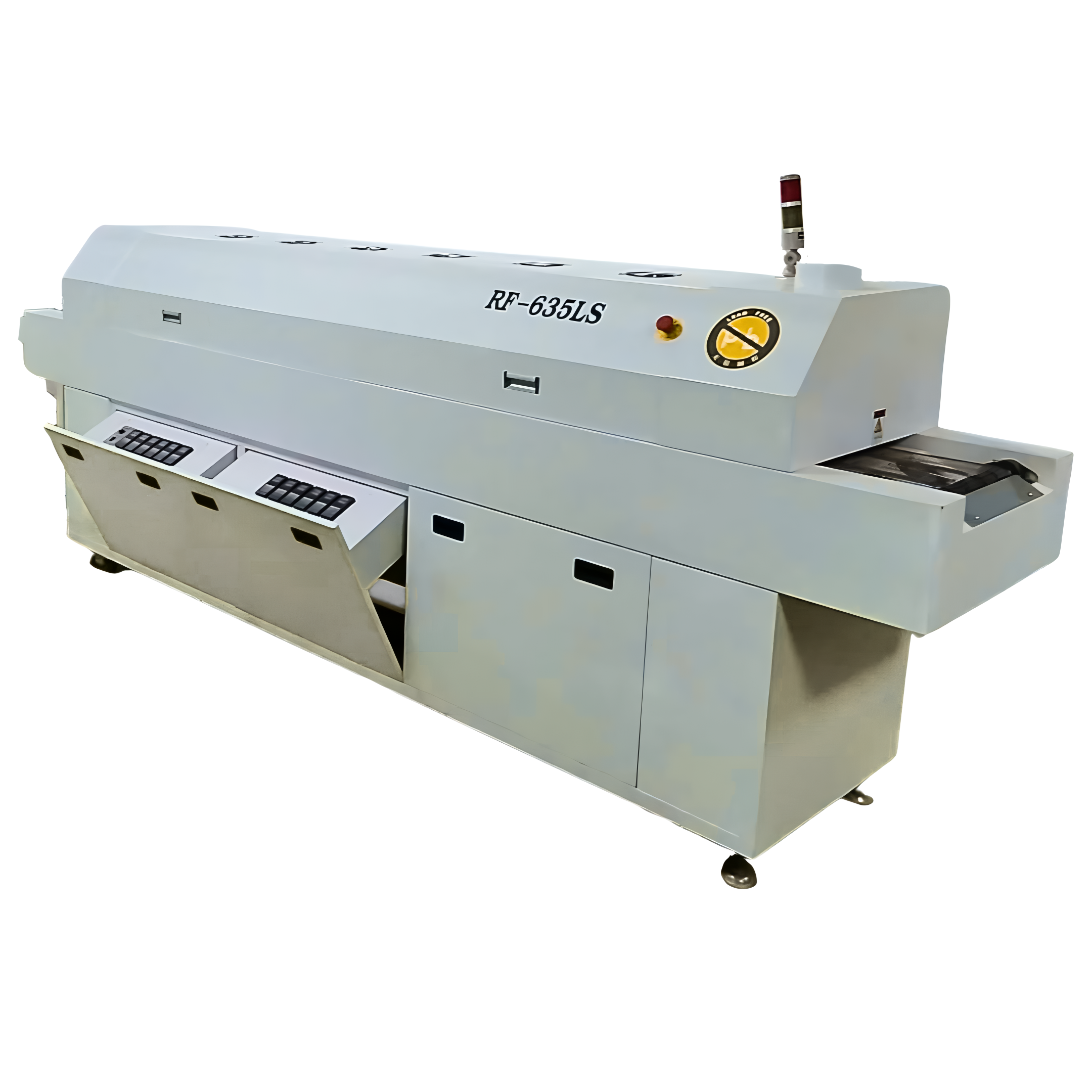

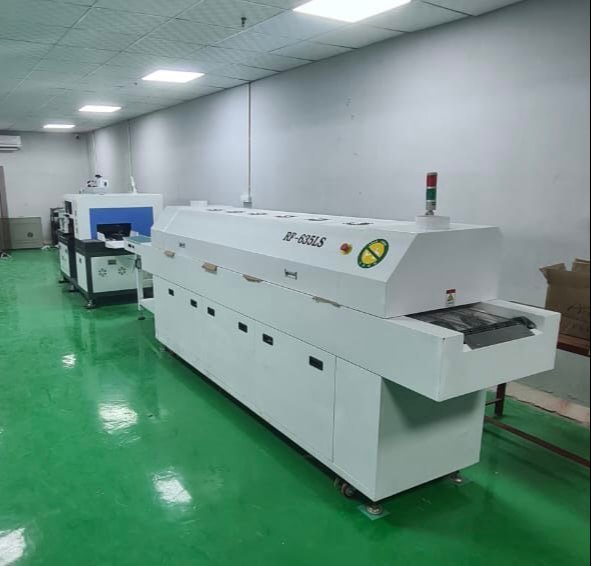

XJS-635LS Reflow Oven
Introduction
The XJS-635LS Reflow Oven is designed for medium-to-large scale SMT production lines, providing stable heating, uniform soldering, and reliable lead-free processing. With a robust 2400mm heating zone, precise PID + SSR temperature control, and energy-efficient design, this oven is the ideal solution for PCB assembly manufacturers who demand high performance at a competitive cost.
Features:
- Compact yet powerful with 2400mm heating length.
- Lead-free and leaded solder compatible.
- Accurate temperature control (±2°C) ensures consistent soldering.
- Self-transport design for smooth PCB movement.
- Quick 15-minute heating time reduces downtime.
- Optimized for SMT lines, LED assembly, and consumer electronics.
Technical Specifications:
| Parameter | Details |
|---|---|
| Heating Mode | Hot air circulation |
| Heating Zone Length | 2400 mm |
| Cooling Zones | 1 Natural air cooling |
| Maximum PCB Width | 350 mm |
| PCB Height | 25 mm |
| Transport Direction | L-R or R-L |
| Transport Method | Belt-transport |
| Belt Height | 880 ± 20 mm |
| Conveyor Speed | 0–1500 mm/min |
| Temperature Accuracy | ±1–2°C |
| Temperature Range | Room temp – 350°C |
| Solder Type | Lead-free / Leaded |
| Control Mode | PID + SSR |
| Power Supply | 3 Phase, 380V, 50Hz |
| Starting Power | 16 KW |
| Operating Power | 5 KW |
| Heating Time | ~15 min |
| Dimensions | 3500 × 700 × 1300 mm |
| Weight | 400 kg |
