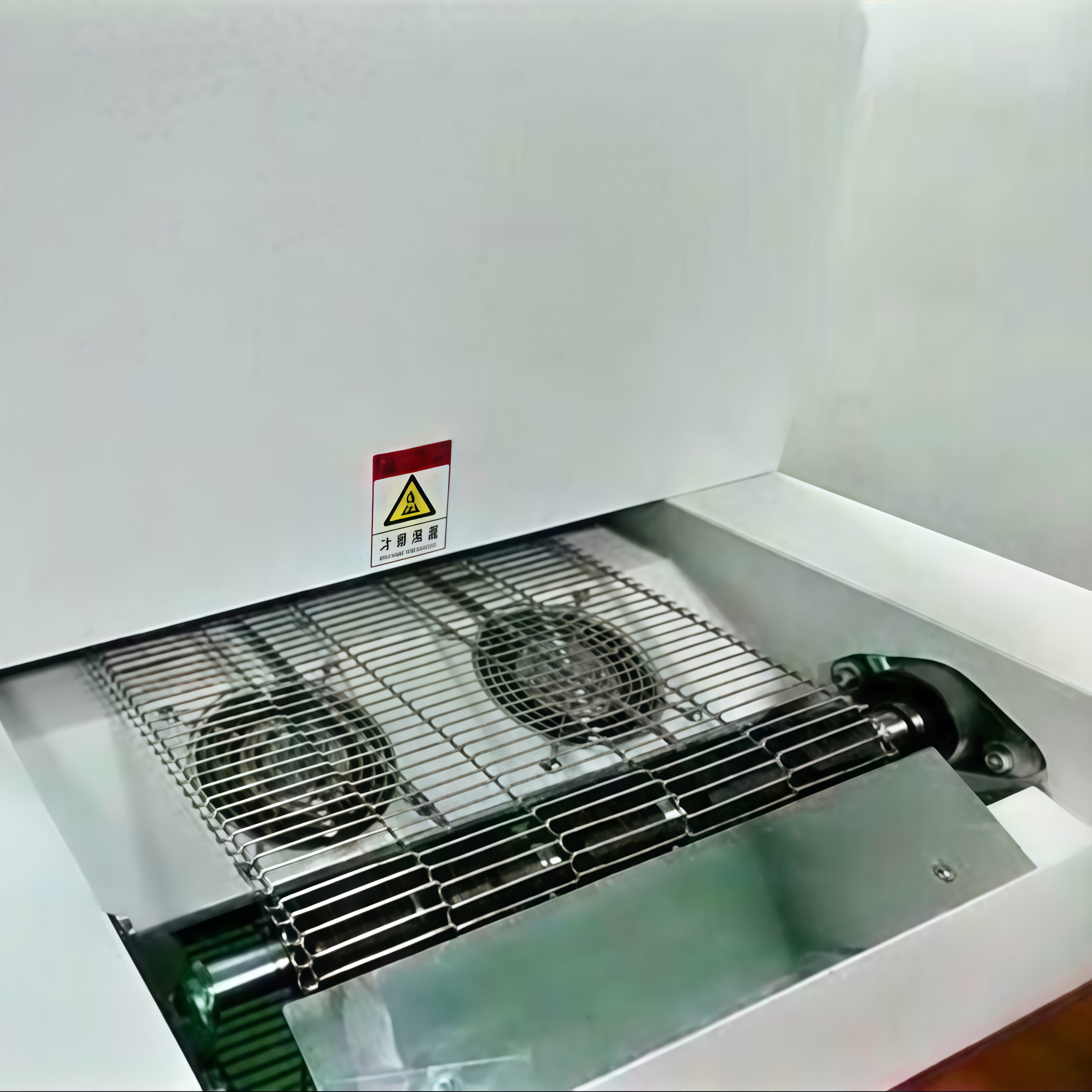

XJS-835LS Reflow Oven
Introduction
The XJS-835LS Reflow Oven is a premium solution for large-scale SMT assembly lines, designed to handle PCBs up to 350mm wide with unmatched accuracy. With advanced mesh belt/conveyor options, ±1°C temperature stability, and a powerful 20KW system, it ensures superior soldering quality even for complex boards. Built for LED, telecom, automotive, and industrial electronics, the XJS-835LS is the ultimate machine for mass production reliability.
Features:
- Compact yet powerful with 2800mm heating length.
- Lead-free and leaded solder compatible.
- Accurate temperature control (±2°C) ensures consistent soldering.
- Self-transport design for smooth PCB movement.
- Quick 15-minute heating time reduces downtime.
- Optimized for SMT lines, LED assembly, and consumer electronics.
Technical Specifications:
| Parameter | Details |
|---|---|
| Heating Mode | Hot air circulation |
| Heating Zone Length | 2800 mm |
| Cooling Zones | 1 Natural air cooling |
| Maximum PCB Width | 350 mm |
| PCB Height | 25 mm |
| Transport Direction | L-R or R-L |
| Transport Method | Belt-transport |
| Belt Height | 900 ± 20 mm |
| Conveyor Speed | 0–1800 mm/min |
| Temperature Accuracy | ±1–2°C |
| Temperature Range | Room temp – 350°C |
| Solder Type | Lead-free / Leaded |
| Control Mode | PID + SSR |
| Power Supply | 3 Phase, 380V, 50Hz |
| Starting Power | 20 KW |
| Operating Power | 5 KW |
| Heating Time | ~20 min |
| Dimensions | 4200 × 900 × 1500 mm |
| Weight | 700 kg |
