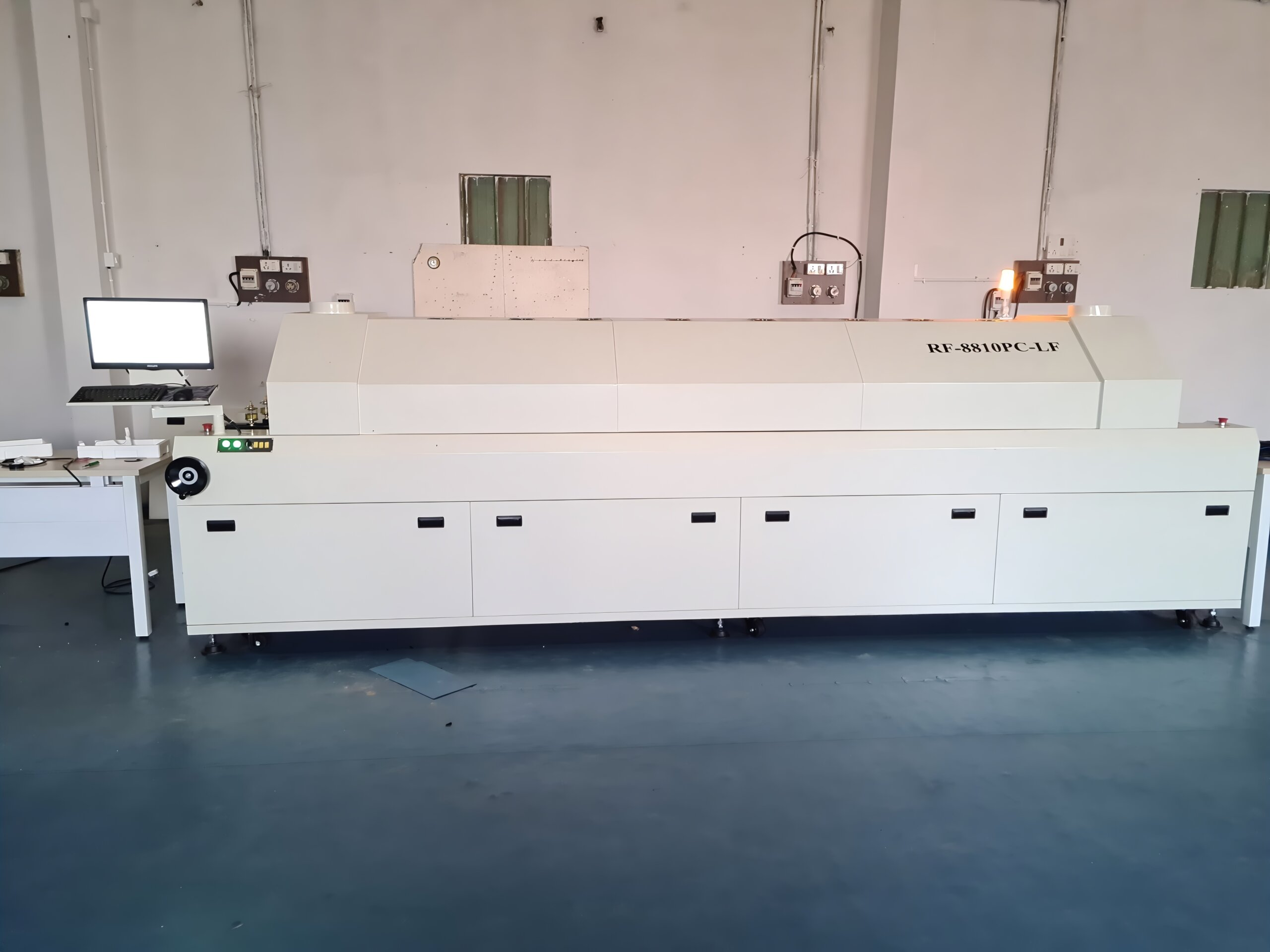

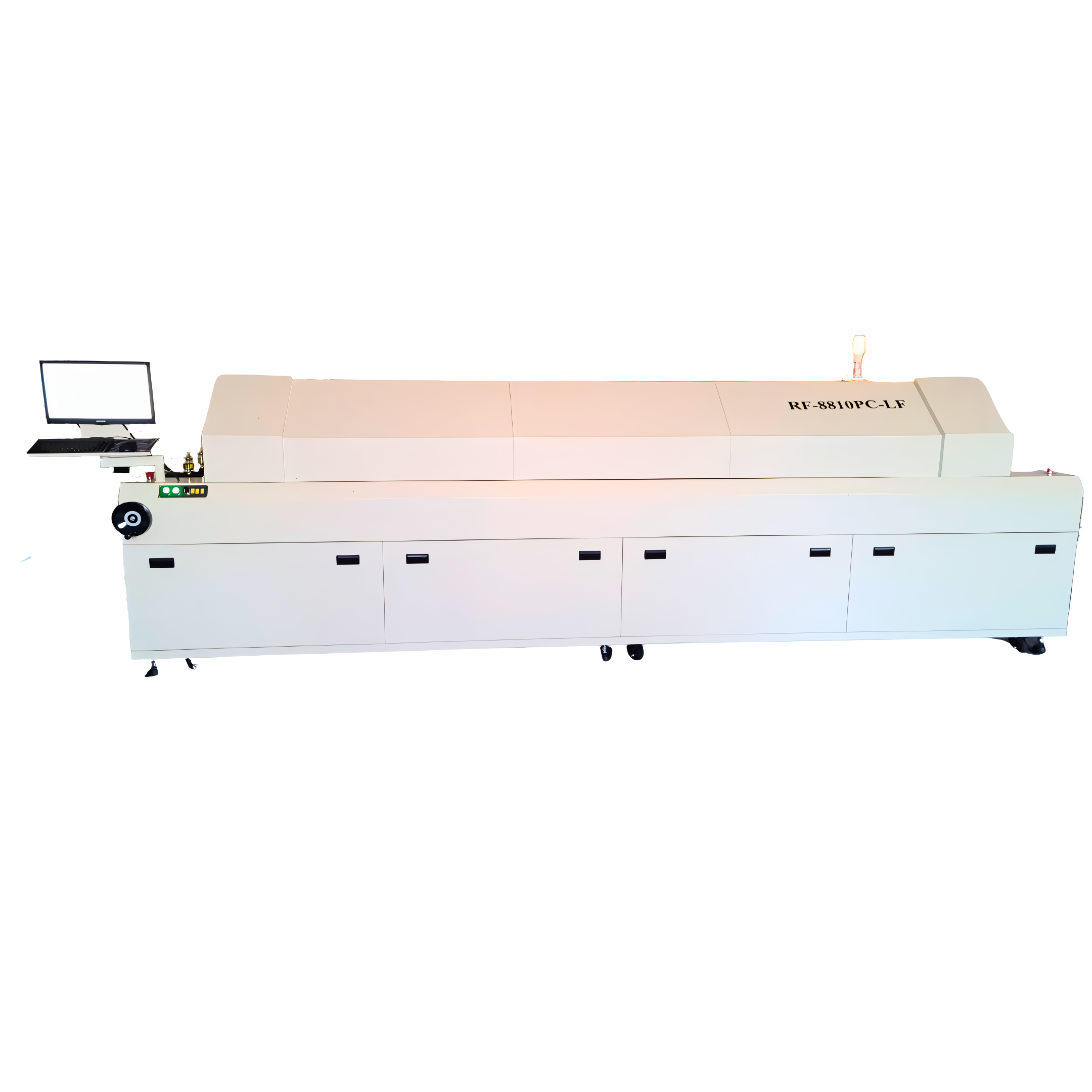

XJS-8810PC Reflow Oven
Introduction
The XJS-8810PC Reflow Oven is built for high-volume SMT production, equipped with 8 heating and 8 cooling zones for maximum throughput and quality assurance. Its advanced square heat wire heating system ensures rapid thermal transfer, while the PID + SSR temperature control guarantees ±1°C precision. Designed for electronics, LED, and automotive PCB assembly, this oven combines productivity, stability, and reliability in one package.
Features:
- 8+8 zone design for stable and uniform reflow soldering.
- Wide 400mm PCB compatibility.
- Flexible mesh belt or slideway transport options.
- Fast 20-minute heating time.
- High energy efficiency with 32KW starting power.
- Perfect for industrial-scale SMT production.
Technical Specifications:
| Parameter | Details |
|---|---|
| Heating Mode | Square heat wire heating |
| Heating Zones | 8 heating + 8 cooling |
| Heating Zone Length | 3140 mm |
| Cooling Zones | 2 |
| Maximum PCB Width | 400 mm |
| PCB Height | 25 mm |
| Transport Direction | L-R |
| Transport Method | Mesh belt / Slideway (optional) |
| Belt Height | 900 ± 20 mm |
| Conveyor Speed | 0–1800 mm/min |
| Temperature Accuracy | ±1°C |
| Temperature Range | Room temp – 350°C |
| Solder Type | Lead-free / Leaded |
| Control Mode | PID + SSR |
| Power Supply | 3 Phase, 380V, 50Hz |
| Starting Power | 32 KW |
| Heating Time | ~20 min |
| Dimensions | 4400 × 900 × 1400 mm |
| Weight | 1600 kg |
