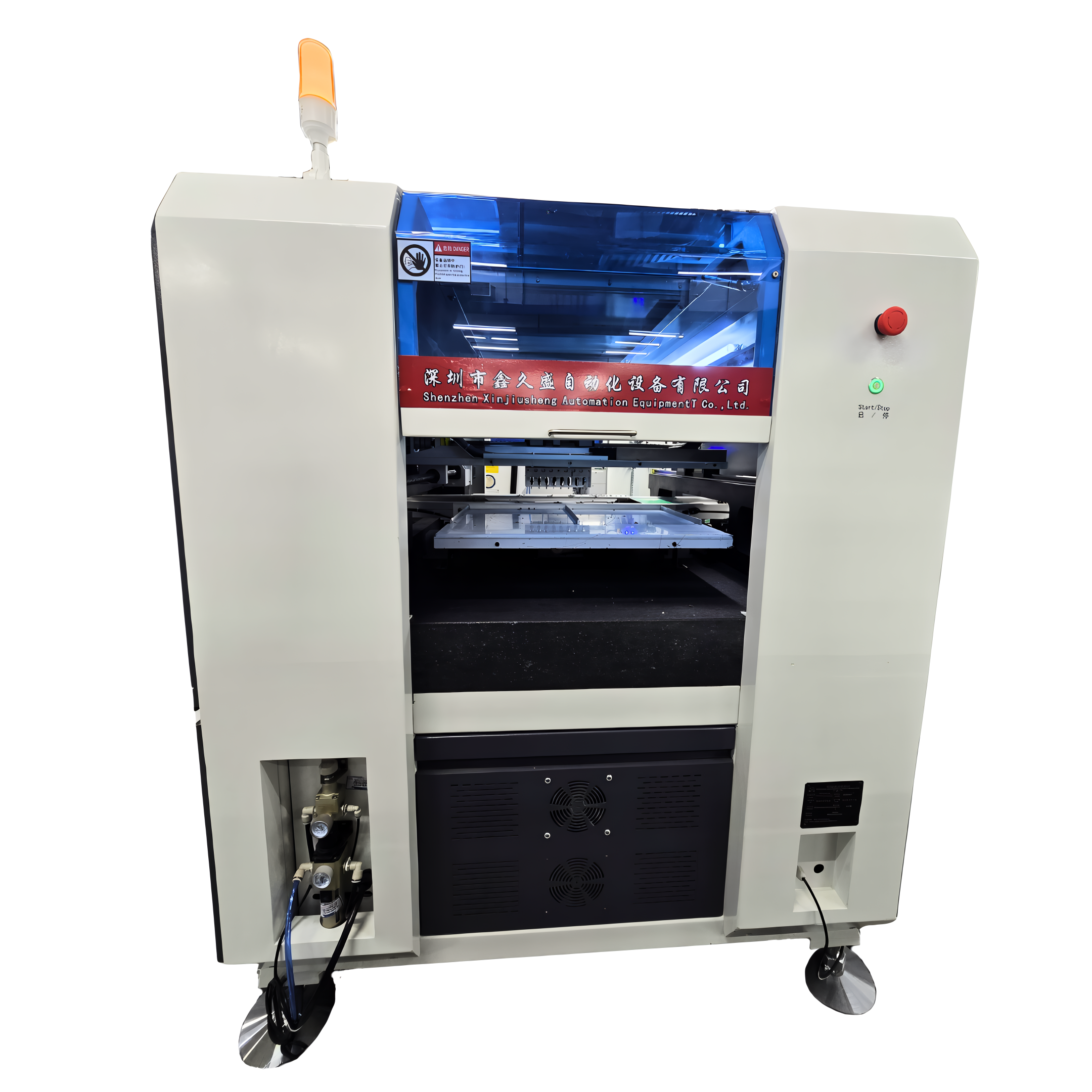

XJS-DOB8T Pick & Place Machine
Introduction
The XJS-DOB8T Pick and Place Machine is an entry-level yet powerful SMT assembly solution, designed for startups, EMS companies, and manufacturers who need cost-effective automation. Despite its compact size, it achieves 25,000 CPH placement speed, making it suitable for mid-volume PCB production.
Equipped with new generation intelligent control software, it allows simple programming and quick setup, reducing downtime and increasing productivity. With stable feeders, precise alignment, and reliable performance, the XJS-DOB8T helps businesses automate PCB assembly at an affordable cost.
Features:
- Efficient placement speed up to 25,000 CPH.
- ±0.02 mm accuracy ensures high-quality PCB assembly.
- Supports Vibration & Electrical feeders for versatility.
- User-friendly visual programming system for quick setup.
- Perfect for small to medium PCB manufacturers.
- Energy-efficient performance with only 2KW running power (Max 4KW).
- Compact footprint designed to save factory space
Technical Specifications:
| PCB Size | 450×400, 1000×400mm | Mounting Height | 18 mm |
|---|---|---|---|
| Mounting Accuracy | 0.05 mm | Average Mounting Speed | 10000-20000 CPH |
| Feeder Stations | 24 | Feeder Type | Electrical, Viberation, Tray |
| Power Supply | AC 220V, 50Hz | Power Consumption | 2KW (Max 4KW) |
| Air Pressure | 0.65 – 0.75 Mpa | Control Mode | PC |
| Dimension | 1300 × 1450 × 1420 mm | Weight | 1600 Kg |
