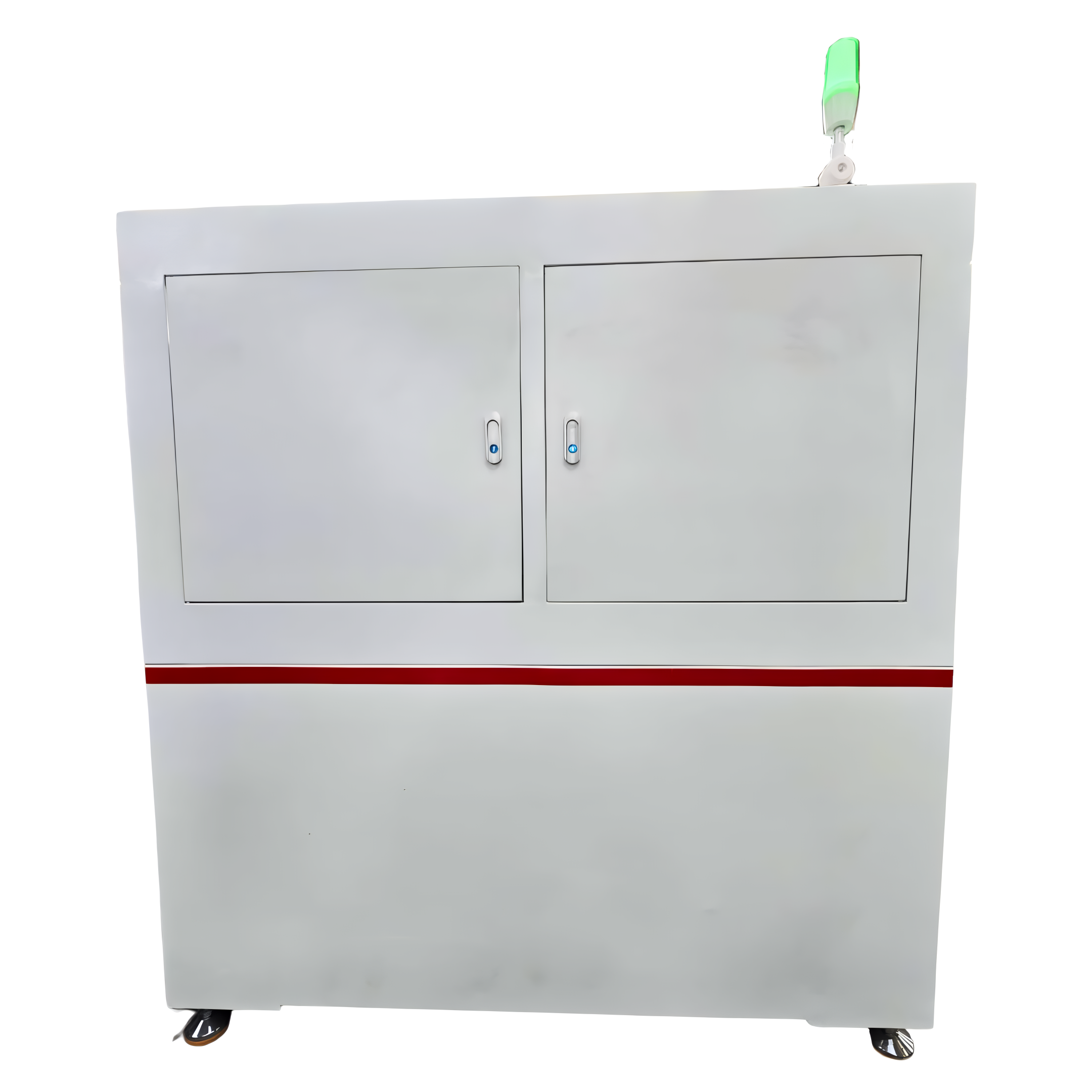

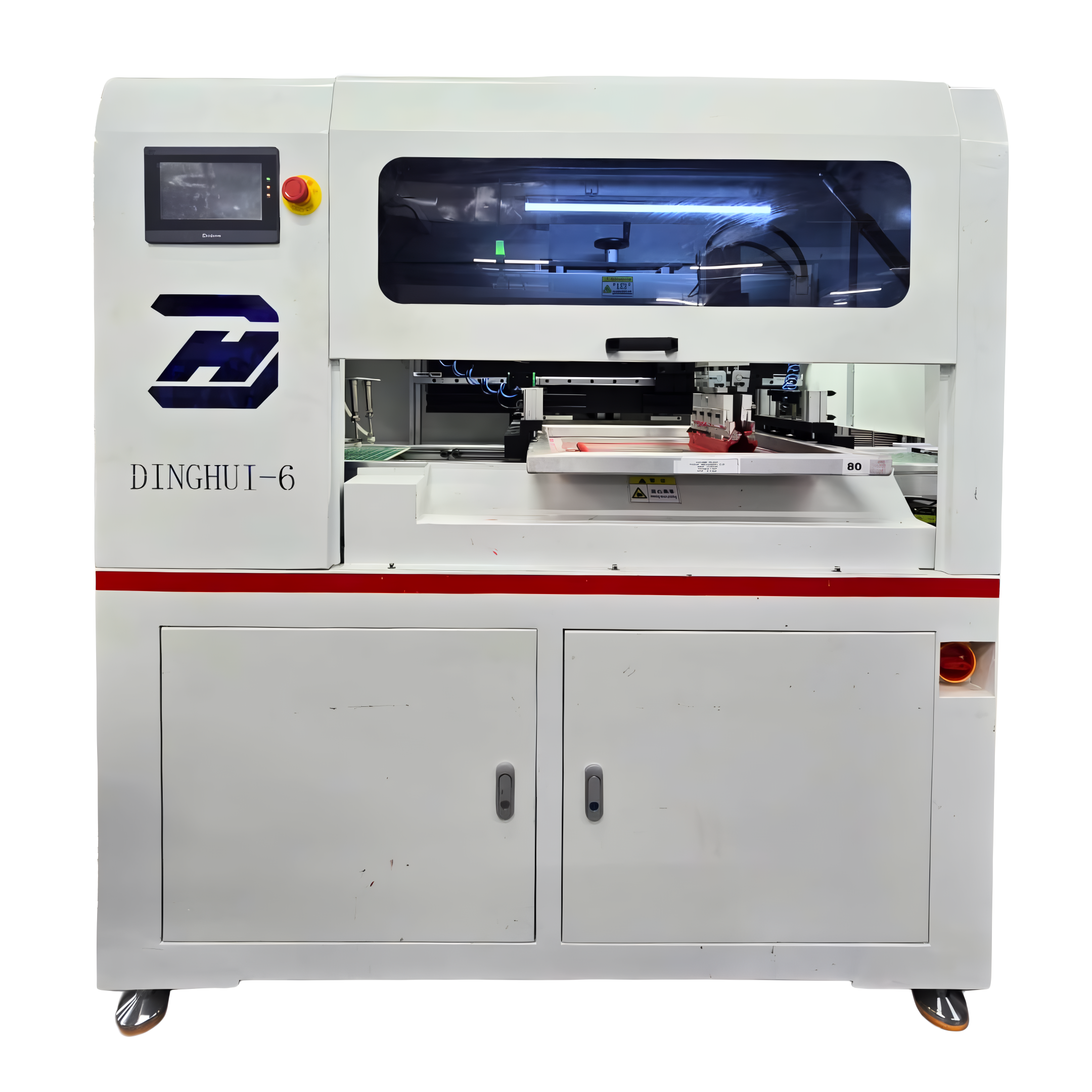

XJS-L500 Automatic Solder Paste Printer
Introduction
The XJS-L500 Automatic Solder Paste Printing Machine is designed to deliver high precision, speed, and consistency for modern SMT production lines. With advanced PLC + touch screen control and intelligent alignment, this printer ensures flawless solder paste application on every PCB. Engineered for mass production, reliability, and low maintenance, it is the perfect choice for manufacturers seeking higher throughput and improved quality standards. Whether you are building consumer electronics, LED boards, or automotive assemblies, the XJS-L500 ensures accuracy, stability, and cost efficiency.
Features:
- Large Printing Area (580×400mm): Suitable for a wide range of PCB sizes.
- Ultra-High Accuracy (±0.02mm): Delivers stable solder paste deposition with minimal error.
- 360° Adjustable Printing Angle: Flexible operation for different PCB layouts.
- Supports Multiple Component Sizes: From 0603 to 5050, SOP, MOV, BGA, and up to 48-pin ICs.
- Smart Control System: Touchscreen + PLC for easy operation and monitoring.
- Durable & Efficient: Built with strong frame design and efficient 200W power system.
Compact Design: Space-saving machine with optimized dimensions for SMT lines.
Technical Specifications:
| Parameter | Details |
|---|---|
| Model | XJS-L500 |
| Printing Table Area | 580 × 400 mm |
| PCB Board Size | 550 × 350 mm |
| PCB Board Thickness | 0.2 – 3 mm |
| Printing Accuracy | 0.02 mm |
| Component Angle | 0 – 360° |
| Component Size | 0603–5050, SOP, MOV, BGA, 48 Pin IC |
| Control System | Touchscreen + PLC |
| Voltage | 220V / 50–60Hz |
| Power Supply | 200W |
| Air Pressure Requirement | 4 – 6 kgf/cm² |
| Machine Dimensions | 1500 × 750 × 1600 mm |
| Weight | 500 kg |
At XJS Electronics, we specialize in delivering cutting-edge SMT solutions tailored for electronics manufacturing industries worldwide. Our product portfolio includes Pick & Place Machines, Solder Paste Printers, Reflow Ovens, and Complete SMT Lines. With a strong focus on innovation, durability, and cost efficiency, we empower businesses to scale their production while maintaining superior quality standards.
By choosing XJS Electronics, you benefit from:
- End-to-End SMT Solutions under one roof.
- Made-in-India Excellence with global quality standards.
- Dedicated Technical Support including installation, training, and after-sales service.
