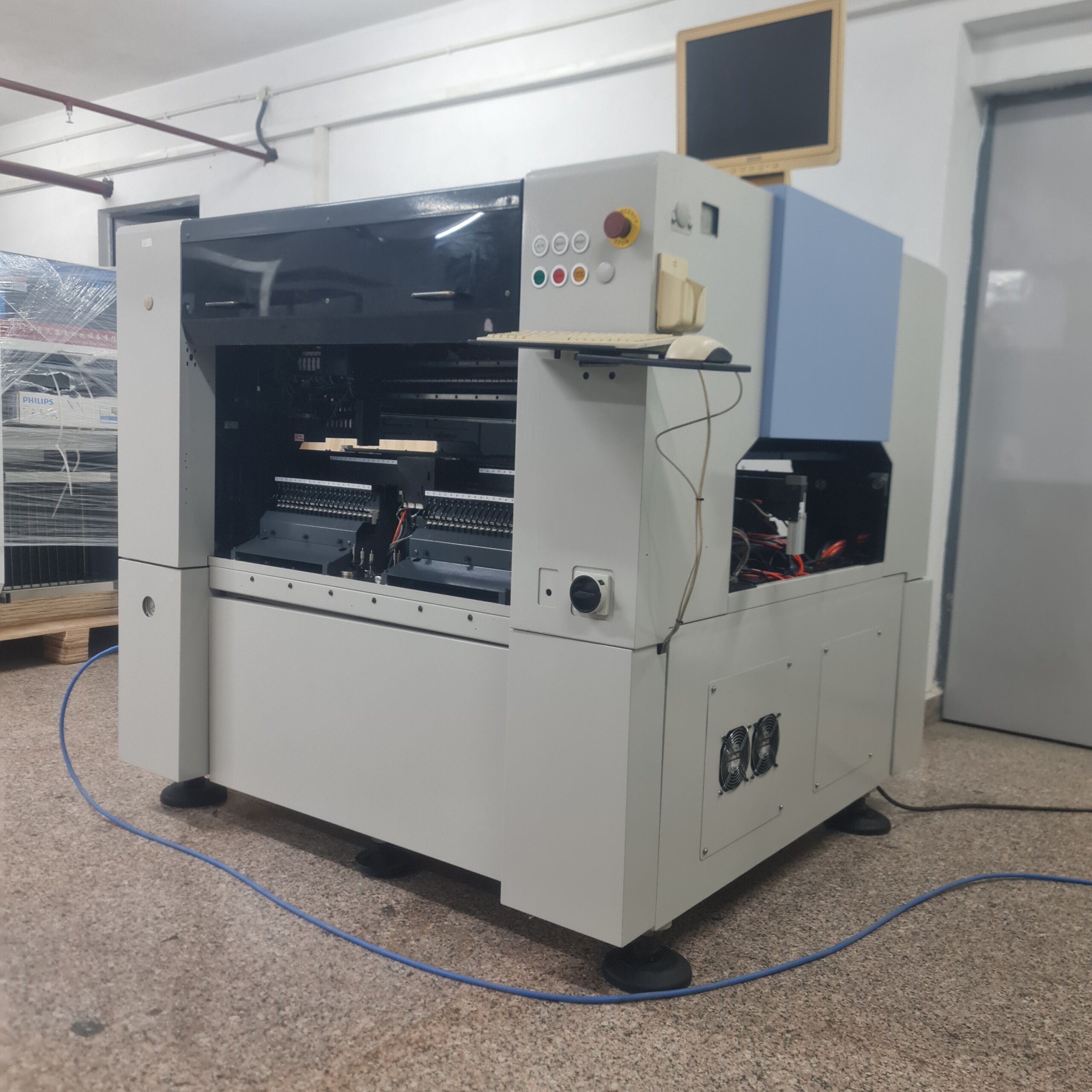

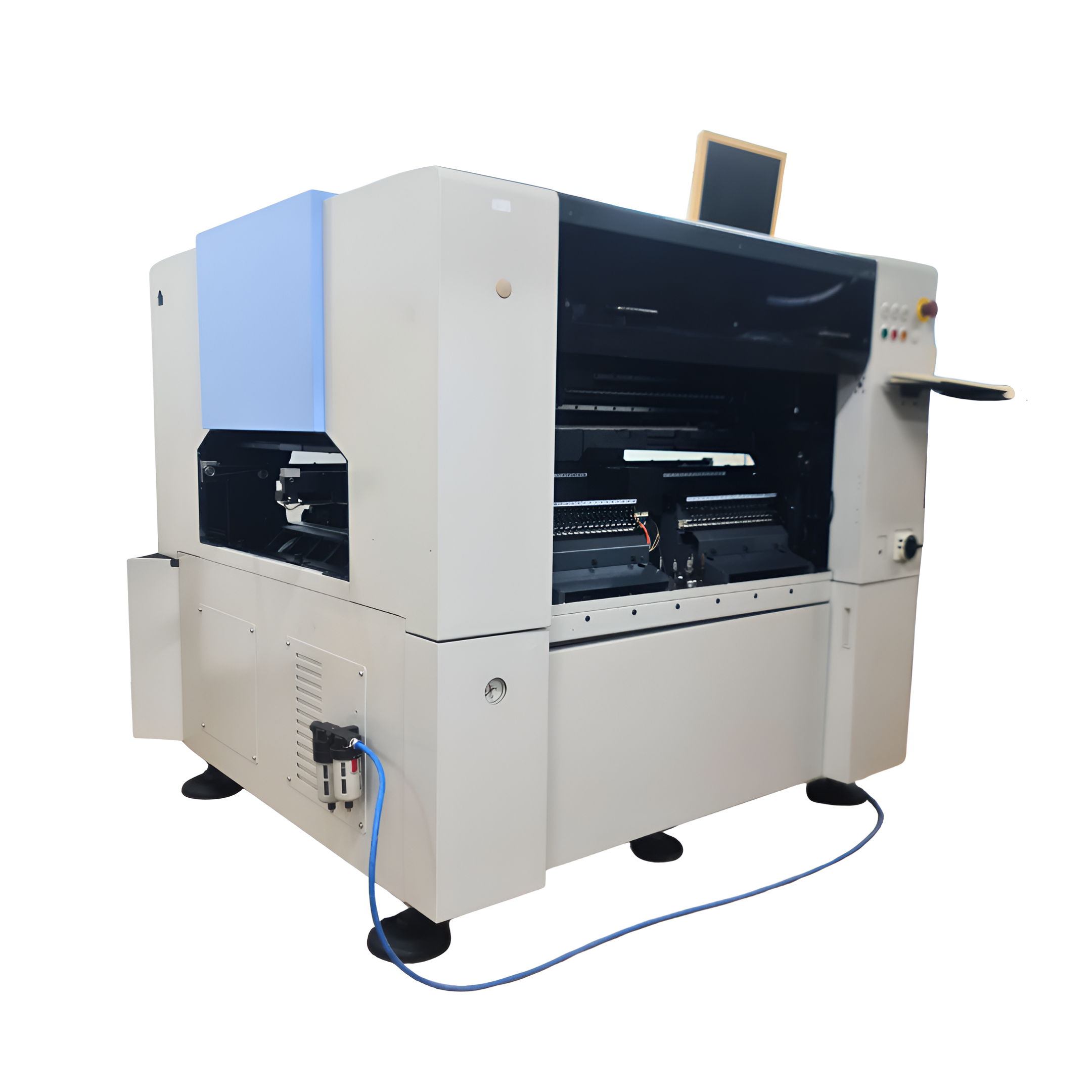

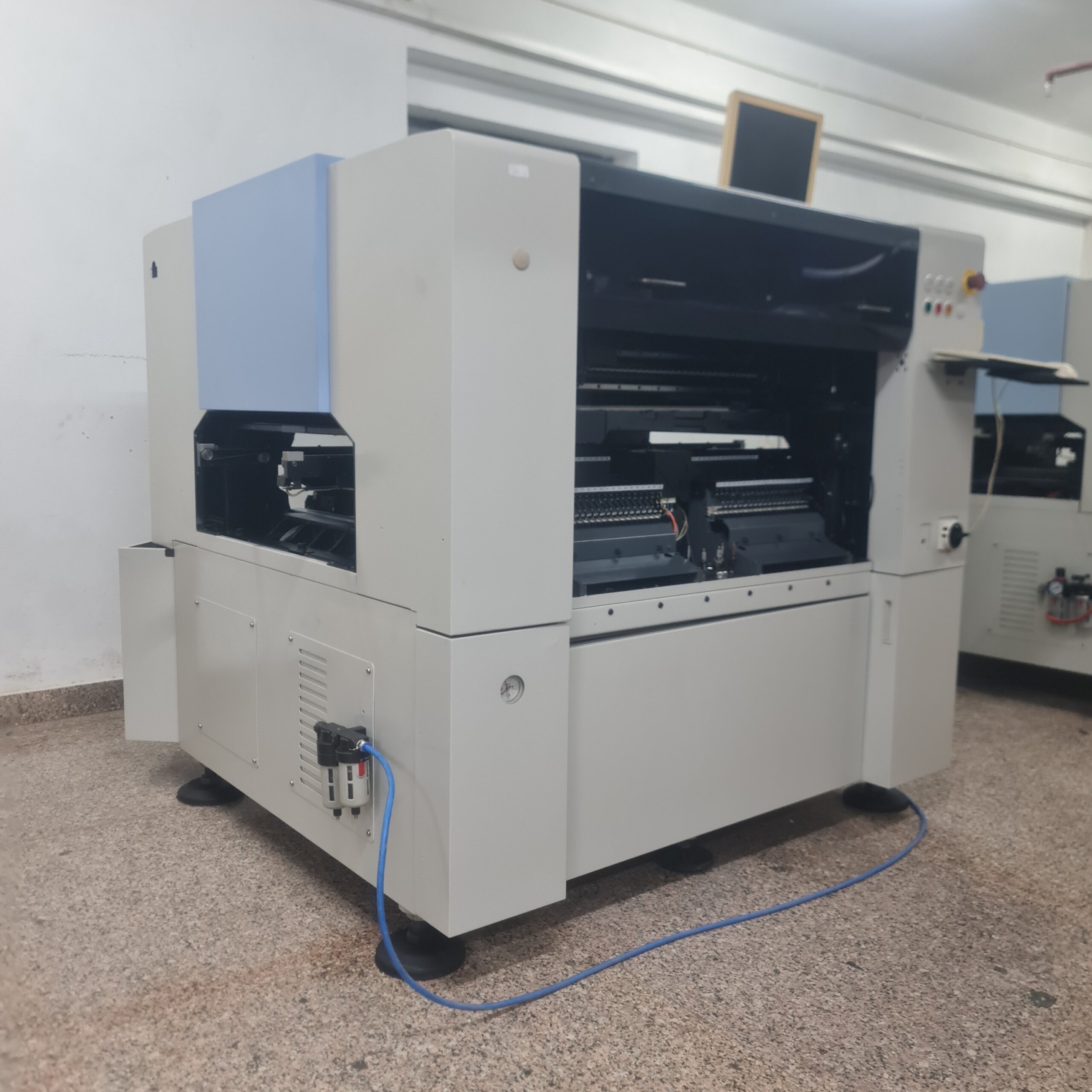

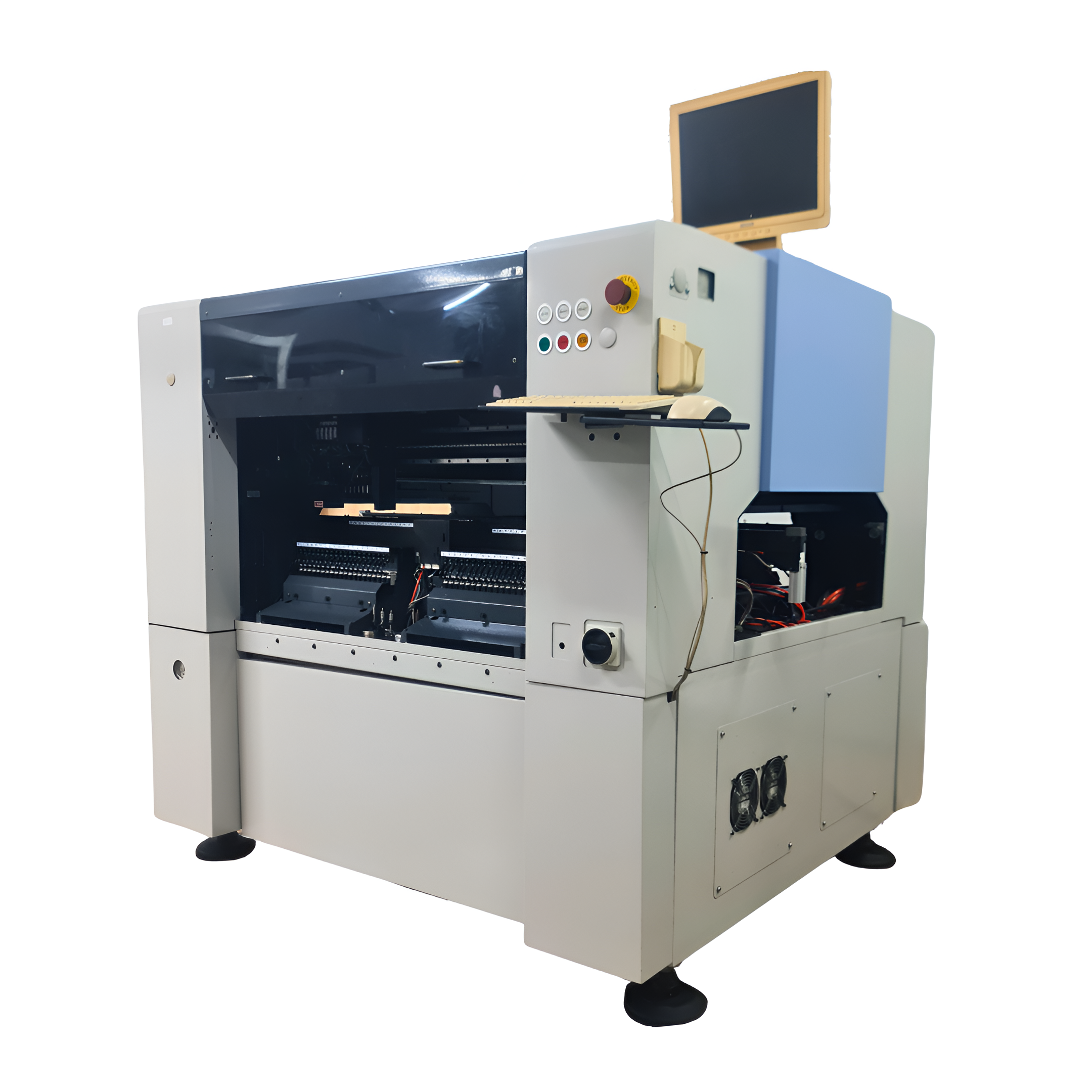

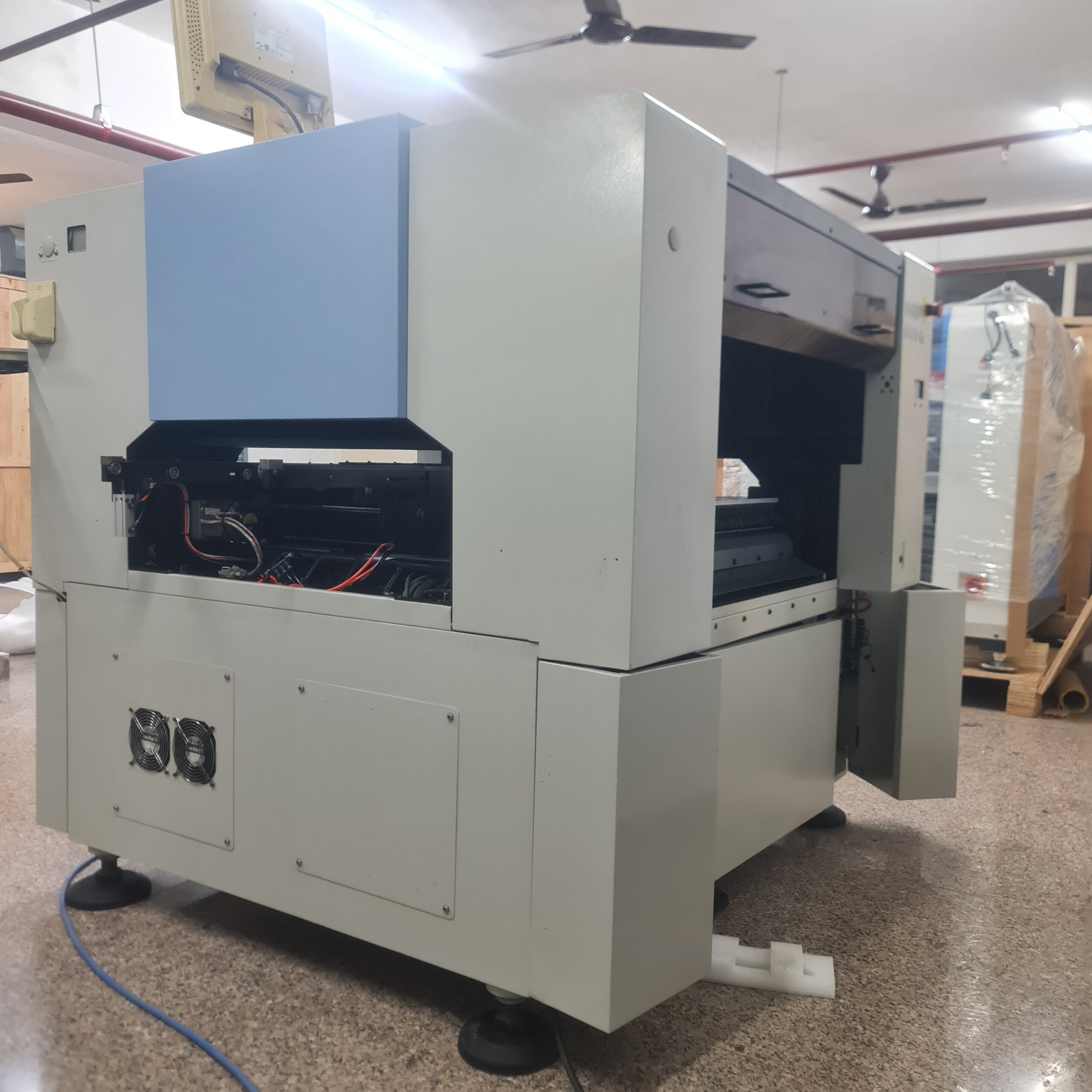

Refurbished Yamaha YV100XG Pick and Place Machine
Introduction
XJS Electronics Pvt. Ltd is a leading importer and supplier of refurbished Yamaha SMT Pick and Place Machines in India. Among our top offerings is the Refurbished Yamaha YV100XG, a high-speed and accurate SMT pick & place system designed for reliable PCB assembly.
Each refurbished YV100XG machine is fully tested, inspected, and certified by our expert engineers before delivery. Backed by the XJS warranty and round-the-clock after-sales service, our customers can count on consistent performance, reduced downtime, and excellent value.
Features:
- High throughput up to 20,000 CPH for optimized SMT production
- Excellent mounting accuracy of ±0.05mm (Chips & QFPs)
- Wide component handling range from 0603 metric to 31mm components
- Maximum PCB size of 460mm × 440mm
- Supports a wide variety of components including SOP, SOJ, QFP, connectors
- Compact footprint with robust build quality for long service life
- Backed by XJS exclusive warranty and 24/7 service support
Technical Specifications:
| Parameter | Details |
|---|---|
| Machine Type | Yamaha YV100XG SMT Pick & Place Machine |
| Applicable PCB Size | Max: L460 × W440mm / Min: L50 × W50mm |
| Throughput (Optimum) | 20,000 CPH (0.18 sec/chip equivalent) |
| Mounting Accuracy | ±0.05mm (Chips & QFPs) |
| Repeatability | ±0.03mm (Chips & QFPs) |
| Applicable Components | From 0603 metric to 31mm components, SOP, SOJ, QFP, Connectors |
| Max Component Height | 6.5mm or less |
| Number of Component Types | Up to 90 types (8mm tape reel conversion) |
| Power Supply | 3-Phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz |
| Air Supply Requirement | 0.55MPa or higher, clean and dry |
| Machine Dimensions | L1,650 × W1,408 × H1,425mm (cover top) |
| Machine Weight | Approx. 1,580 kg |
XJS Electronics Pvt. Ltd is a reputed importer and supplier of refurbished SMT equipment in India. We provide a complete range of Yamaha SMT pick & place machines, feeders, nozzles, soldering solutions, and assembly equipment to support the growing needs of the electronics manufacturing industry.
Our focus is to deliver affordable yet reliable SMT solutions that help manufacturers increase productivity, reduce downtime, and maintain quality. With expert technical support and years of industry experience, we are the preferred partner for SMT production lines across India.
Why Choose XJS Electronics?
- Trusted supplier & importer in India of refurbished Yamaha SMT machines
- Exclusive warranty coverage on all refurbished pick and place systems
- Machines fully tested & certified by skilled engineers before dispatch
- 24/7 after-sales service – technical assistance, spare parts, and online support
- Competitive pricing – high-quality SMT machines at affordable costs
- Proven expertise in electronics, LED, telecom, and automotive PCB assembly sectors
Looking For reliable and cost-effective Refurbished Yamaha YV100XG Pick and Place Machines in India, trust XJS Electronics Pvt. Ltd.
